Eaton Wiring Devices VS310U-V-K
Eaton Wiring Devices

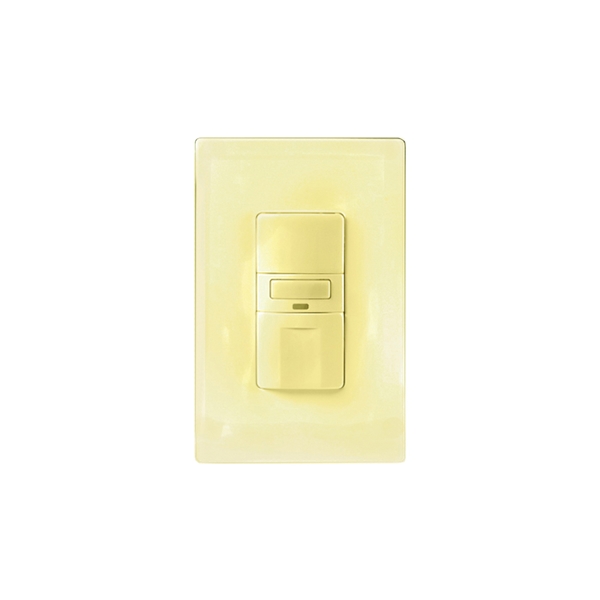

Eaton Wiring Devices VS310U-V-K Motion Sensor Switch with Nightlight and LED, 8.3 A, 120 V, 1-Pole, Motion Sensor

  • Model Number: VS310U-V-K
  • UPC: 032664710117
  • Store SKU: loading

  • Eaton Wiring Devices VS310U-V-K Motion Sensor Switch with Nightlight and LED, 8.3 A, 120 V, 1-Pole, Motion Sensor

  • loading

    Promo Price: loading

  • Quantity
    • Availability:
    • Add To Cart
      Add to Favorite List
      • Supplier SKU: loading
      • Web SKU: 100003874
    Eaton Wiring Devices VS310U-V-K

    Occupancy/vacancy sensor switches use advanced Passive Infrared (PIR) technology to sense the movement of heat-emitting bodies. Occupancy sensors provide auto-ON/auto-OFF or manual-ON/auto-OFF operation while vacancy sensors provide manual-ON/auto-OFF operation only (CA Title 24 Compliant). The sensors automatically turn lights off after a space becomes vacant and a preset time delay elapses. Both versions provide single-pole (single-location) and 3-way (multi-location) wiring and work with all lighting load types (INC, MLV, ELV, FLR, CFL, LED). A selectable and dimmable LED nightlight is provided. All sensors are compatible with any decorator-style or decorator screwless wallplate.

    Voltage Rating    :    120 V
    Current Rating    :    8.3 A
    Frequency Rating    :    60 Hz
    Wattage Rating    :    600 W
    Number of Poles    :    1
    Sensor Type    :    Motion
    Sensing Range    :    1000 sq-ft
    Sensing Angle    :    180 deg
    Timer Range    :    30 s to 30 min
    Lamp Type    :    CFL, Fluorescent, Halogen, Incandescent, LED
    Connection Type    :    Wire
    Temperature Rating    :    0 to 40 deg C
    Mounting Type    :    Wall
    Material    :    Polycarbonate
    Color    :    Ivory
    Includes    :    Mid-Size Decorator Wallplate
    • Can be wired as a single pole or 3-way device
    • Selectable On/Off LED nightlight with press and hold dimming function
    • Green LED indicates load status, provides locator light in dark and blinks to indicate motion detection
    • Push pad design provides minimal travel and crisp actuation
    • Replaces a standard light or fan switch
    • Occupancy sensor provides a selectable ambient light override preventing lights from switching on, when there is acceptable natural light
    • Occupancy sensor version allows to toggle between auto-On/Off or manual-On/auto-Off mode with a simple press and hold of switch
    • Occupancy sensor provides for a bypass feature to allow the sensor to perform as a traditional switch
    • Electrostatic discharge protection
    • No leakage to load in off mode
    • pdfCatalog https://assets.unilogcorp.com/187/ITEM/DOC/Eaton_Wiring_Devices_100003874_Catalog.pdf
    • pdfInstruction/Installation Manual https://assets.unilogcorp.com/187/ITEM/DOC/Eaton_Wiring_Devices_100003874_Instruction_Installation_Manual.pdf
    • pdfSpecification Sheet https://assets.unilogcorp.com/187/ITEM/DOC/Eaton_Wiring_Devices_100003874_Specification_Sheet.pdf
