Simpson Strong-Tie THD50600HF1
Simpson Strong-Tie

Simpson Strong-Tie Titen HD THD50600HF1 Heavy-Duty Screw Anchor, 1/2 in Dia, 6 in L, Carbon Steel, Zinc

  • Model Number: THD50600HF1
  • UPC: 707392660682
  • Store SKU: loading

  • Simpson Strong-Tie Titen HD THD50600HF1 Heavy-Duty Screw Anchor, 1/2 in Dia, 6 in L, Carbon Steel, Zinc

  • loading

    Promo Price: loading

  • Quantity
    • Availability:
    • Add To Cart
      Add to Favorite List
      • Supplier SKU: loading
      • Web SKU: 102520170
    Simpson Strong-Tie THD50600HF1

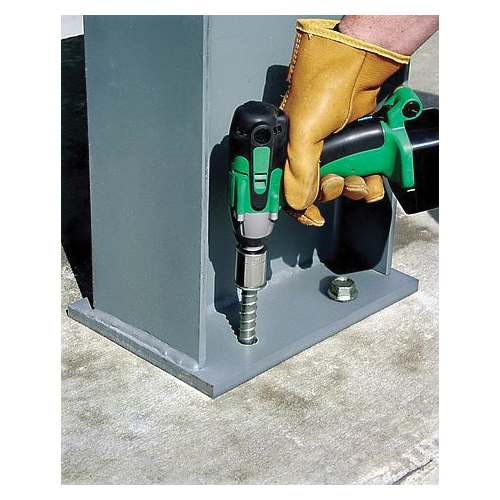

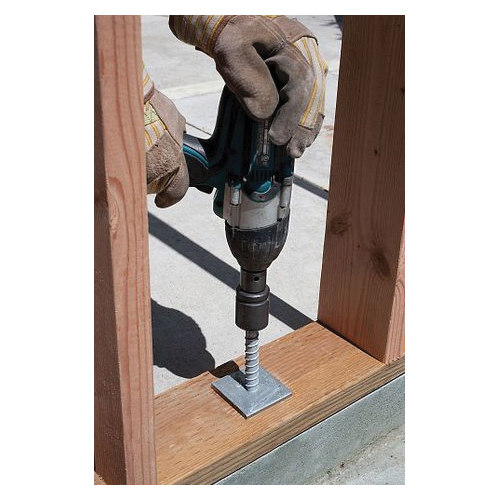

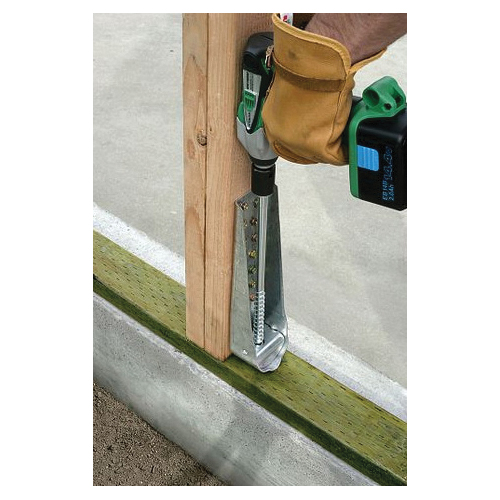

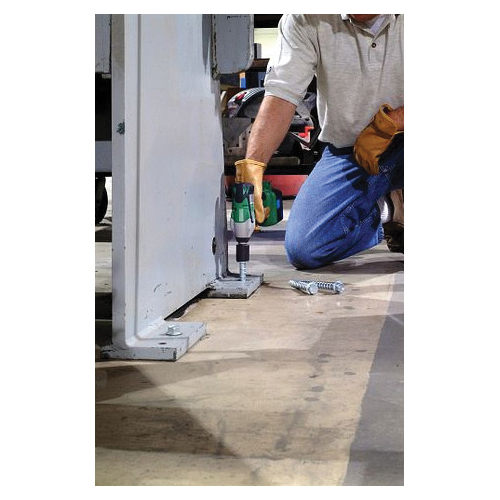

    A high-strength screw anchor for use in cracked and uncracked concrete, as well as uncracked masonry. The Titen HD offers low installation torque and outstanding performance. The Titen HD screw anchor is designed for a wide variety of applications such as sill plates, ledgers, post-bases, seating and other holdown applications. The screw anchor is easy to remove when used in temporary applications such as bracing and formwork, or when a fixture needs to be relocated. The stainless steel Titen HD is the optimal choice for applications in corrosive or extreme environments such as salt water, or when chemical or corrosive solutions are present.

    Diameter    :    1/2 in
    Length    :    6 in
    Minimum Embedment Depth    :    3-1/4 to 4 in
    Drill Size    :    1/2 in
    Head Type    :    Hex Washer
    Drive Type    :    Hex
    Tensile Strength    :    20, 130 lb
    Shear Strength    :    7455 lb
    Minimum Clearance    :    5/8 in
    Fixture Thickness    :    5/8 to 11/16 in
    Minimum Concrete Thickness    :    5 to 6-1/4 in
    Material    :    Carbon Steel
    Finish    :    Zinc
    Color    :    Gray
    • Qualified for static and seismic loading conditions
    • Thread design undercuts to efficiently transfer the load to the base material
    • No special drill bit required; designed to install using standard-sized ANSI tolerance drill bits
    • Designed to install using standard-sized ANSI tolerance drill bits
    • Hex washer head requires no separate washer and provides a clean installed appearance
    • Carbon steel Titen HD utilizes a specialized heat-treating process that creates tip hardness for better cutting without compromising the ductility
    • Zinc-plated carbon steel anchor can be used for temporary exterior applications
    • pdfCatalog https://assets.unilogcorp.com/187/ITEM/DOC/Simpson_Strong_Tie_102520162_Catalog.pdf
    • linkVideo Link 1 https://youtu.be/MvY7J-Cbjp0
    • linkVideo Link https://youtu.be/RPqXK6YvAwY
